Spuhr

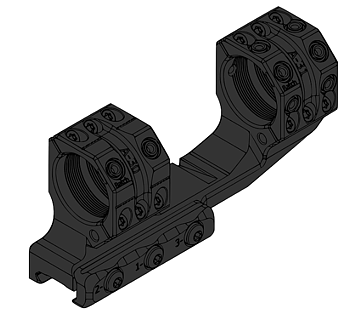

Cantilever 70 mm/2.76”
Color Black Hardcoat Anodized
Height 38 mm
Quick Release No
Rail/Type Picatinny
Tilt 0 MIL/MOA
Tube Diameter 34 mm

Article no.: SP-3022

Extended cantilever. Allows the scope to be mounted 70 mm/2.76” further forward than with a non-cantilever mount.

10-degree wedge included

0 MIL/0 MOA
Height: 38 mm/1.5”
Length: 140 mm/5.51”

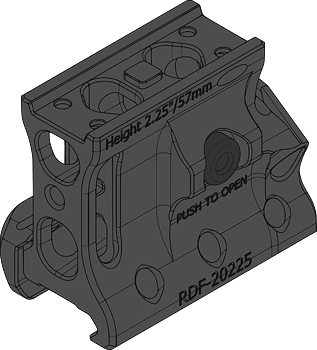

Color Black Hardcoat Anodized
Footprint Aimpoint Micro
Height 57 mm/2.25"
Interface Picatinny Rail
Magnifier Yes
Optional Rail Yes
Quick Release No

Passar bla på Spuhr A-0227

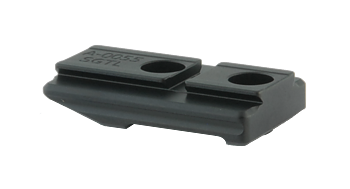

Article no.: A-0055

Interface for attaching the Aimpoint ACRO C-1, C-2, P-1, and P-2 red dot sights to our Hunting Series rings and mounts and to our ISMS scope mounts. Includes screws.

Will also fit the Steiner MPS.

Weight: 20 g/0.7 oz

För montering av rödpunkt på Spuhrfästen etc.

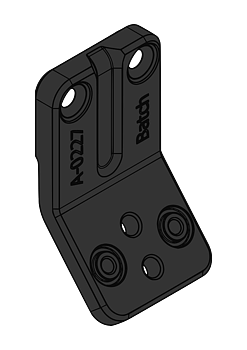

Intermediary interface for attaching any of our accessory interfaces or Picatinny rails at a 20-degree angle in relation to the side of an ISMS scope mount, SICS chassis, etc. Can be mounted for left-handed use.

Includes screws.

Weight: 33 g/1.2 oz

För montage av Rödpunkt på Spuhr montage.

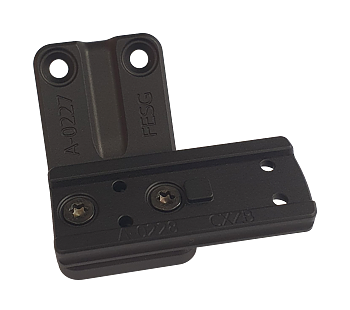

Interface for attaching Aimpoint Micro red dot sight to the side of the ISMS scope mount (4:30 or 7:30-position). Consists of a separate Aimpoint Micro footprint and an A-0227 Angled Universal Interface. Fully reversible for lefthanded use.

The A-0228 is also suitable for:
• Aimpoint CompM5
• Actus Core-2 1x20
• Athlon Midas TSR2
• Blaser RD 17
• HoloSun HS403 and Paralow 403 (except the A model,) 503, 515, and 530
• MAKdot S 1x20
• Minox RV1
• Primary Arms Micro Dots
• SIG Romeo4 & Romeo5
• Vector Optics Maverick 1×22
• Vortex Crossfire


Includes screws.

Weight: 55 g/1.9 oz

Note: The Aimpoint Micro footprint (engraved A-0228) cannot be used without the A-0227 Angled Universal Interface (included).

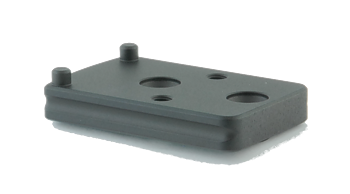

Article no.: A-0010

Interface for attaching Trijicon RMR Type 1 and 2 and Trijicon SRO to an ISMS scope mount. Includes shim plate and screws.

The A-0010 footprint also matches the following, though screw sizing may vary:
• Trijicon RMR
• Trijicon SRO
• Holosun HS407C
• Holosun HS507C
• Holosun HS508T


Height: 9.5 mm/.374"
Weight: 21 g/0.7 oz

Note: Will not fit Hunting Series mounts and rings - use H-0010 instead. Please note that the two pins are designed to be used together with the included shim plate - if the shim plate is left out the pins may bottom out in sight.

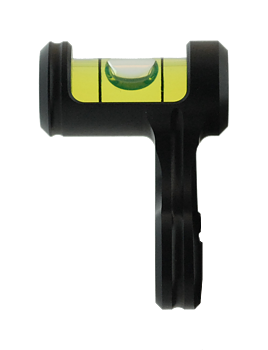

External Bubble Level Assembly designed to attach forward on the scope mount body or ring. Perfect solution for shooters who are unable to focus on the built-in level in the standard ISMS series or who has a model without a built-in level.

The angle of the assembly can be adjusted using two set screws. Includes screws.

Width: 29.5 mm/1.16”
Height: 41.6 mm/1.64”
Length: 32.1 mm/1.25”

Weight: 20 g/0.7 oz

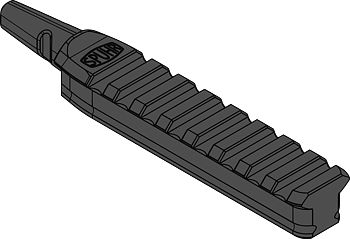

Picatinny Rail for attaching a laser illuminator, etc., to the front of the RD/RDF series of mounts.

Rail: 80 mm/3.15"
Length: 96 mm/3.78" (from front of mount)
OAL: 121 mm/4.76"
Weight: 28 g/1 oz

Note: Includes M5 Torx 20 screw

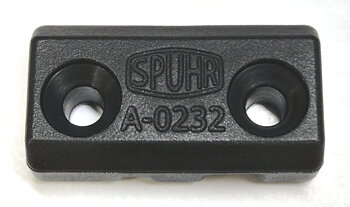

Set of 3 nylon cable organizers for use on our ISMS scope mounts. The organizers attach to the mount using the enclosed screws.

Length: 32 mm / 1.37"
Width: 17 mm / 0.67"
Height: 8 mm / 0.32"
Weight: 3 gr / 0.1 oz per organizer sans screws

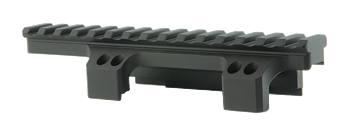

Lightweight Top Rail for MP5 and clones. Made from single billet of 7075 T651.

Height: 13 mm/0.51” (from top of receiver to top of rail)
Length: 125.0 mm/4.92”
Weight: 113 g/4 oz

Note: Current design includes a a lightening cut so that the serial number of the firearm can be seen with the top rail in place.

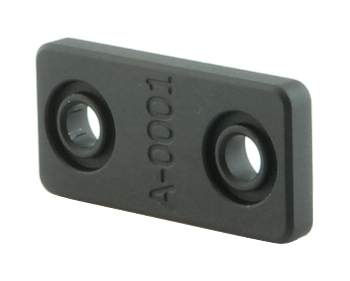

Article no.: A-0001

Spacer for Spuhr Interface.
Height: 4 mm/.157”
Weight: 7 g/0.2 oz

Includes screws.

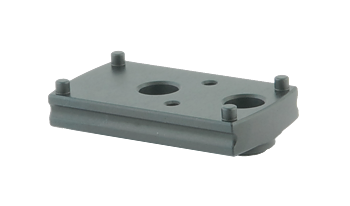

Interface for attaching Docter/Noblex and Burris FastFire (1 through 4) sights to the Hunting Series mounts and rings. Includes screws.

The H-0011 footprint also matches the following, though screw head sizing may vary:

• Docter/Noblex Sight C / Sight 2+ / Sight III / QUICKsight 5.0 VR
• Delta Optical Mini Dot Gen II
• EOTech MRDS
• Hawke Vantage 1×25
• Leica Tempus
• MAKdot 1×25
• Sightmark Mini Shot M-Spec
• Vortex Viper & Venom
• Vomz Pilad 1×20



As the H-series of accessories are designed for our Hunting Series the finish is slightly glossier than that of the A-series versions and the interface height is slightly higher (see third picture for comparison).

Weight: 18 g/0.6 oz

Note: Will also fit ISMS mounts and rings

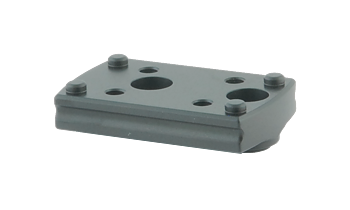

Interface for attaching a Leupold DeltaPoint or DeltaPoint PRO to Hunting Series mounts and rings. Includes screws.

The H-0009 footprint also matches the following, though screw head sizing may vary:

Firepoint
Tasco Optima
Trijicon RedDot
Some Shield Mini Sight, JPoints, and US Optics MCRS



Weight: 16 g/0.6 oz

As the H-series of accessories are designed for our Hunting Series the finish is slightly glossier than that of the A-series versions and the interface height is 2 mm higher (see third picture for comparison).

Note: Will also fit ISMS mounts and rings
